Description

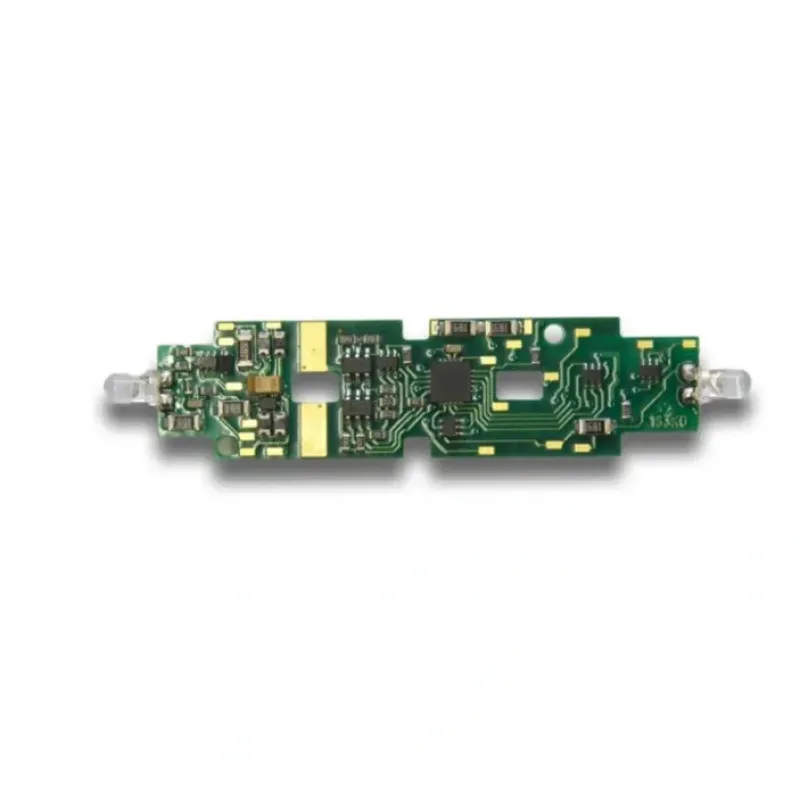

This is Digitrax DN163K0D Plg N’Ply dcdr Kato F40PH. Plug N’ Play DCC decoder. Replacement board six function decoder designed to fit Kato N-Scale F40PH locomotives. Plug N’Play decoders are designed as drop-in replacements for the existing light board in the indicated locomotives. Decoders include golden-white LEDs that simulate the hue of real headlights. Installation is straightforward following the manufacturer’s instructions.

This 6 function decoder is rated at 1.5A (2A peak) and has 6 FX3 functions, .5A.

Decoder features two 6.5mA function outputs, supports Digitrax FX3 functions and 14, 28 or 128-step speed control.

Other features include:
Torque compensation for smooth, silent operation
Momentum with acceleration and deceleration
User selectable normal direction of travel
Switching speed feature for easier and faster access to yard speeds
Three-step speed tables set start, mid and max voltage for custom control
28-step speed tables with 256 level resolution for precise control
Scalable Speed Stabilization (Back EMF) with simple setup & 256 level resolution
SuperSonic(TM) motor drive for silent operation

FX3 function outputs for prototypical lighting effects:
Constant brightness lighting with directional or independent control
Realistic effects such as ditch lights, Mars lights, strobes, and more
Dynamic and static qualifiers operate functions based on direction, F0 on or off, loco direction and F0, and whether loco is moving
Function remapping for custom setup
Master light switch turns off all lights & functions with one keystroke
Advanced consist function controls
Quick and easy Plug N’Play installation
Realistic golden-white LED headlights
Transponder equipped
All-mode programming with operations mode read back (reads back CV values on the mainline)
Decoder reset CV with or without speed table reset
Motor isolation protection prevents decoder damage
Basic, advanced & universal consisting
Two or four digit addressing
DCC compatible
FCC Part 15, Class B RFI compliant

Condition: Factory New (C-9)
Operational Status: Functional
Original Box: Yes (P-9)

Manufacturer: Digitrax
Model Number: DN163K0D

Scale/Era: N Scale
Model Type: Control & Electrical
