Description
Here is a Lionel 6-34181 80 WATT CW Transformer. The CW-80 transformer is intended to be used indoors. Do not use this device if water is present. Serious or fatal injuries may result. The CW-80 Transformer was meant to operate on 120-volt, 60-Hertz power. Do not connect this product to any other power supply.

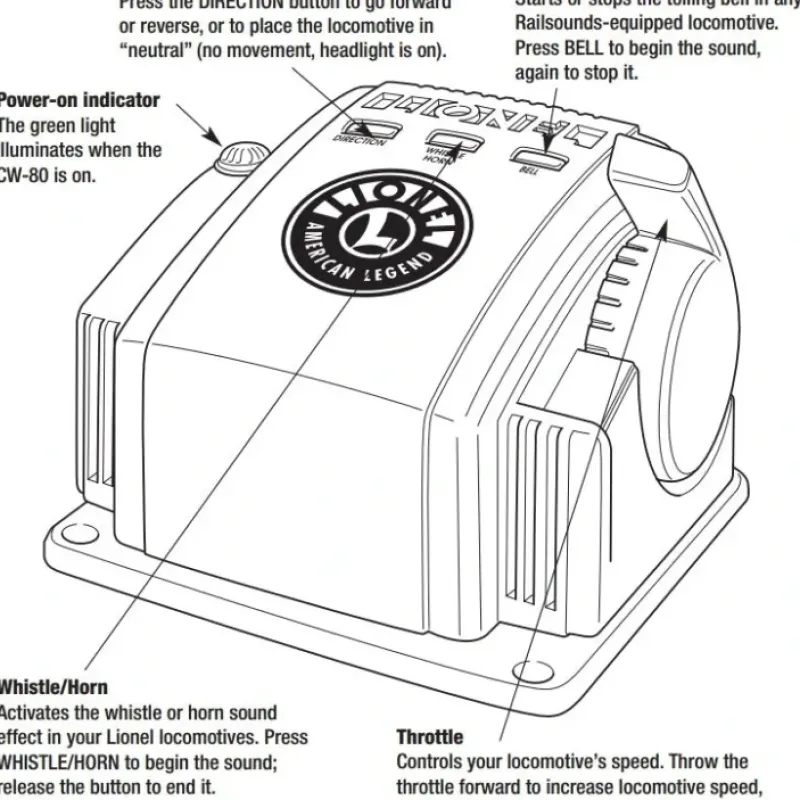

Its key features are:
Throttle – Push the throttle forward to increase track power. The markings on the throttle approximate the percentage of full power. For more realism, push the throttle slowly to gradually increase or decrease the speed of the locomotive. Slowing or stopping the locomotive with the throttle instead of the DIRECTION button will allow you to continue in the same direction when you increase the throttle again. To achieve this effect, reduce the throttle to the point that the locomotive stops moving, dont completely turn off the throttle. That way, your train wont sequence into neutral.
Power-on indicator – The green light will remain on during normal operation. The green light will begin to flash if you exceed the power limit of the Transformer. The unit will allow you to momentarily exceed the power limit, but power will be gradually reduced until the problem is corrected. This safety feature replaces the circuit breaker. The benefit is that the Transformer will not instantly turn off.
Direction – The DIRECTION control button interrupts track power to activate the reverse unit in locomotives with forward-neutral-reverse operation. This button has no effect on locomotives not equipped with reverse units or on locomotives with the reverse unit in the OFF position.
Whistle/Horn – The WHISTLE/HORN button will activate Lionel sound-equipped locomotives, including those equipped with the RailSounds sound system. The sound will continue until the button is released. No external sound activation buttons are needed.
Bell – The BELL button will activate all RailSounds bells. Press and hold the BELL button for two to three seconds to begin the sounds; press and hold the button again to turn off the ringing.
Condition: Factory New (C-9)
Operational Status: Functional
Original Box: Yes (P-9)
Manufacturer: Lionel
Model Number: 6-34181
Road Name: **** No Road Name
Scale/Era: O Modern
Model Type: Control & Electrical
The Trainz SKU for this item is P11588811.
Trainz Product Id: 11588811
