Digitrax DN163A1 Plug 'N Play Decoder Atlas N Scale SD60, SD60M, SD50 Loco – Your Source for Gaming Essentials Trains

Description

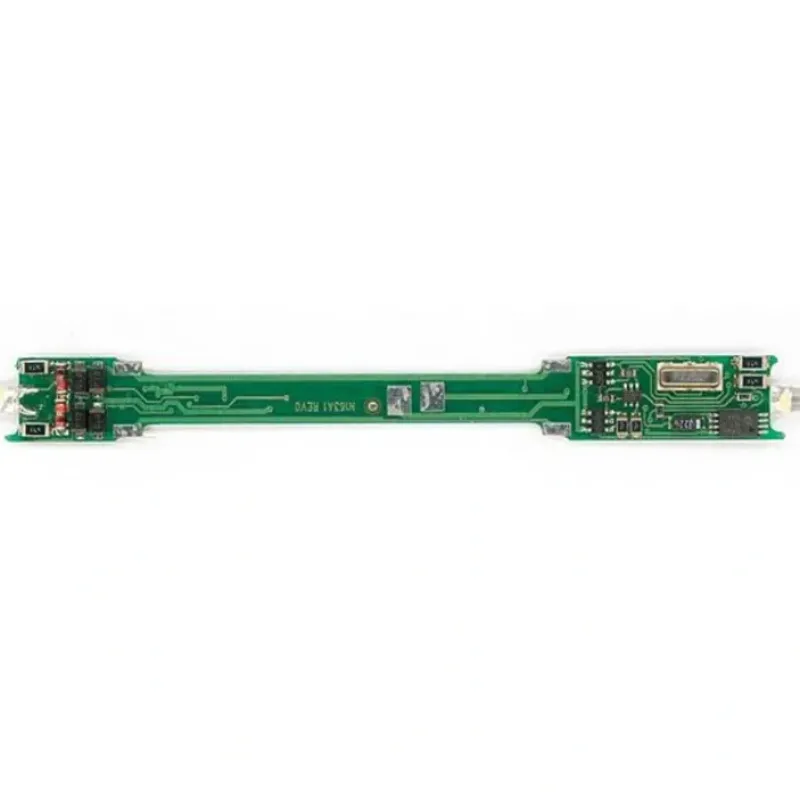

This is Digitrax DN163A1 Plug-N-Play decoder Atlas SD50,60,60M. Board replacement decoder for Atlas N-Scale SD60, SD60M, SD50 and others. Golden-White LEDs for added realism. Decoder Lock equipped. Plug N’Play decoders are designed as drop-in replacements for the existing light board in the indicated locomotives. Decoders include golden-white LEDs that simulate the hue of real headlights. Installation is straightforward following the manufacturer’s instructions.

This 6 function decoder is rated at 1.5A (2A peak) and has 6 FX3 functions, .5A. Decoder features two 6.5mA function outputs, supports Digitrax FX3 functions and 14, 28 or 128-step speed control.

Other features include:
Torque compensation for smooth, silent operation.
Momentum with acceleration and deceleration.
User selectable normal direction of travel.
Switching speed feature for easier and faster access to yard speeds.
Three-step speed tables set start, mid and max voltage for custom control.
28-step speed tables with 256 level resolution for precise control.
Scalable Speed Stabilization (Back EMF) with simple setup and 256 level resolution.
SuperSonic(TM) motor drive for silent operation.
FX3 function outputs for prototypical lighting effects:
Constant brightness lighting with directional or independent control
Realistic effects such as ditch lights, Mars lights, strobes, and more.
Dynamic and static qualifiers operate functions based on direction, F0 on or off, loco direction and F0, and whether loco is moving.
Function remapping for custom setup.
Master light switch turns off all lights and functions with one keystroke.
Advanced consist function controls
Quick and easy Plug N’Play installation
Realistic golden-white LED headlights
Transponder equipped
All-mode programming with operations mode read back (reads back CV values on the mainline)
Decoder reset CV with or without speed table reset.
Motor isolation protection prevents decoder damage.
Basic, advanced and universal consisting
Two- or four digit addressing
DCC compatible
FCC Part 15, Class B RFI compliant

Condition: Factory New (C-9)
Operational Status: Functional
Original Box: Yes (P-9)

Manufacturer: Digitrax
Model Number: DN163A1
Road Name: **** No Road Name

Scale/Era: N Scale
Model Type: Control & Electrical

The Trainz SKU for this item is P11476134.

Trainz Product Id: 11476134
